What Actually Happens When You Install a Car Parking Shade
Buying a car parking shade is one decision. Getting it installed correctly is another. A shade structure that fails a UAE summer — one that sags, tears, or collapses under a shamal — almost always comes down to poor installation rather than a bad product. Here is what a professional car parking shade installation in the UAE looks like from start to finish.
Step 1: Site Survey and Measurements
Before any materials are ordered, Arab Muzalat sends a survey team to your property. The survey captures:
- Parking footprint — exact dimensions and vehicle count (compact cars need 2.5 × 5 m per bay; SUVs and 4WDs require 3 × 6 m minimum).
- Ground type — the foundation method depends entirely on what is underfoot: poured concrete driveway, interlocking pavers, compacted gravel, or bare soil.
- Underground services — irrigation lines, drainage, water supply, and electrical cables must be marked before any drilling or excavation begins.
- Sun angle and wind direction — the shade is oriented so canopy coverage is maximised during peak afternoon heat and wind loads are minimised.
Step 2: Foundation Work
This is the step most often rushed by cheap installers, and the one that causes the most failures.
- Core-drilled concrete footings: For existing concrete driveways, the poles are set into core-drilled holes filled with non-shrink grout. Depth and diameter are calculated for the pole height and canopy wind load.
- Poured concrete footings: For sand or soil areas, a footing of specified depth (typically 600–800 mm) is excavated, a steel cage inserted, and concrete poured and cured before the poles go in. This is the method used for most Abu Dhabi and Sharjah villa installations.
- Surface-mounted base plates: Used on reinforced slabs where core drilling is not possible (e.g., waterproofed podium decks in Dubai marina or hotel carports). Chemical anchor bolts bond the base plate to the slab.
The foundation is always sized for a higher wind load than the typical UAE building code minimum — because the shade is exposed and unprotected from all directions.
Step 3: Steel Frame Erection
Once footings have cured (typically 24–48 hours for fast-set grout, 3–7 days for standard concrete), the galvanised steel poles and cross-beams are erected. For cantilever designs, the arms are attached with precision torque settings — under-torqued connections are the second most common cause of shade failures in the UAE after inadequate foundations.
The frame is then checked for level and plumb with a digital level before any canopy material is attached. Any racking or twist at this stage is corrected while the frame is still accessible.

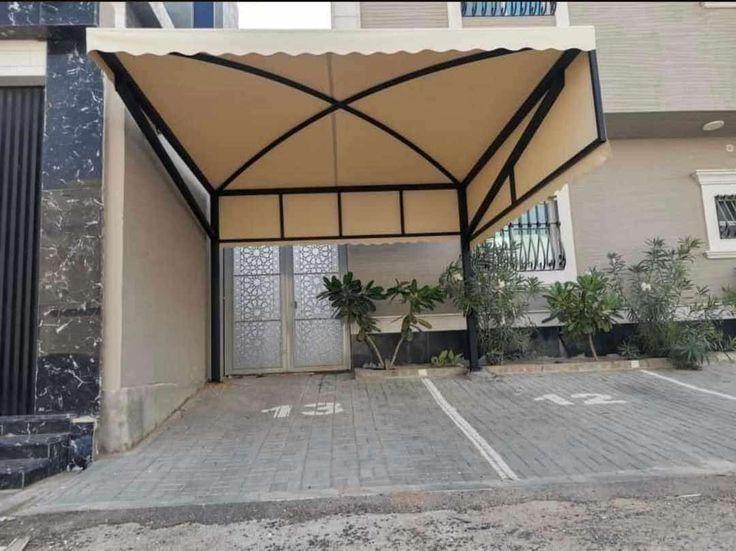

Step 4: Canopy Installation
The canopy — whether polycarbonate sheets, HDPE shade fabric, or PVC-coated polyester — is installed after the frame is confirmed level:
- Polycarbonate sheets: Panels are cut to size, fitted with aluminum extrusion edge caps, and secured to purlins with UV-stable rubber-gasketed screws. Thermal expansion gaps are left at all edges — UAE temperature swings can move a panel several millimetres between winter morning and summer afternoon.
- HDPE shade fabric: Tensioned over the frame and secured with stainless steel hooks or lacing wire. A minimum 10% tension is applied to prevent wind flutter without over-stressing the weave.
- PVC-coated fabric: Welded-seam panels attached to the frame perimeter with heavy-duty spring clips and tensioned with perimeter hem ropes.
Step 5: Finishing and Inspection
Before handover, the team:
- Checks all bolt torques are at specification.
- Inspects canopy edges for any untrimmed material or sharp edges that could scratch vehicles.
- Clears the site of drilling dust, cuttings, and packaging.
- Walks the client through any seasonal maintenance the structure needs.
How Long Does Installation Take?
A single-car cantilever shade on a prepared concrete driveway typically takes one day: survey and core drill in the morning, frame erection and canopy fitting in the afternoon. A four-car flat-roof shade with poured concrete footings takes 3–5 days including curing time. Large commercial carports — hotel car parks, shopping mall drop-offs, villa compound gates — are quoted individually with a detailed schedule.
